Namizni računalnikiOsnovne plošče

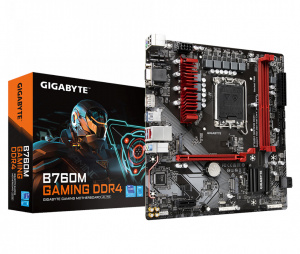

Gigabyte B760M gaming DDR4, SATA3, USB3.2Gen1, DP, LGA1700 mATX

Gigabyte B760M gaming DDR4, SATA3, USB3.2Gen1, DP, LGA1700 mATX

Naša oznaka: MAMA-22

Osnovna plošča s čipom B760M, za Intel LGA1700 podnožje, velikost mATX, DDR4 pomnilnik, za PCIe 4x4 SSD M2...

113,00 €cena vključuje ddv

brezplačna dostava


Specifikacije:
  • Pakiranje: Kartonska embalaža
  • Barva: Črna
  • Dimenzije (Š x D x V): mATX
  • Znamka: GigaByte
  • Za znamko: Intel
  • Kosov v kompletu: 1 kos
  • Garancija: 36 mesecev
  • Stanje: Novo
  • PODNOŽJE: INTEL LGA 1700
  • ZA PROCESORJE: 13th/12th Generation Core i7/i5/i3/Pentium/Celeron
  • FORMAT: mATX format 24.4 cm x 22.5 cm
  • VEZNI ČIP: INTEL B760
  • POMNILNIK:
  • 2 x DDR4 DIMM ECC/non-ECC 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz) do skupno 64GB kapacitete, dual channel in XMP podpora
  • GRAFIKA: DA - preko CPU
  • RAID: RAID 0, RAID 1, RAID 5, and RAID 10
  • RAZŠIRITVENE REŽE:
  • 1 x PCI Express 4.0/3.0 x16
  • 1 x PCI Express 3.0 x1
  • MREŽNA KARTICA: Realtek 2.5GbE LAN chip
  • ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
  • NOTRANJI PRIKLJUČKI:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip headers
  • 1 x RGB LED strip headers
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • ZUNANJI PRIKLJUČKI:
  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 1 x RJ-45 port
  • 3 x audio jacks
  • DODATNO:
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
  • Spletna stran proizvajalca
